Walnut moisture meter | WalnutGuard

Why Walnut Moisture Content Matters Before the First Cut?

Walnut moves. A freshly milled slab at 18% moisture content will shed nearly a third of that before reaching workshop equilibrium, and every percentage point it loses unevenly pulls the grain in a different direction. The cracking that shows up six months into a dining table build rarely starts at the finish coat.

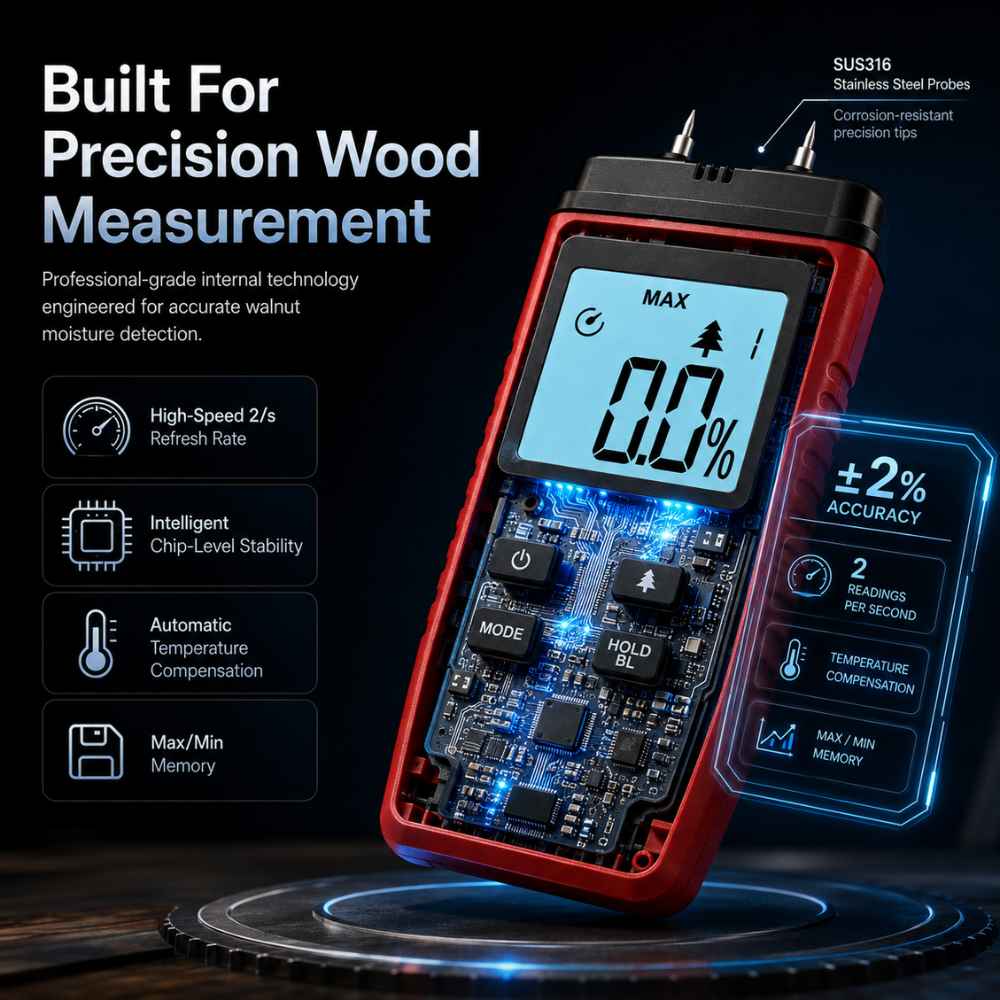

It starts at the decision to skip a moisture reading on delivery day. The WalnutGuard is built specifically around this problem: its SUS316 stainless steel pin probes penetrate walnut's dense grain cleanly, and its ±2% accuracy margin gives a measurement you can actually base a drying schedule on, rather than a rough estimate that leaves you gambling on a board that cost $40 a linear foot.

The Right Moisture Number for Every Walnut Application:

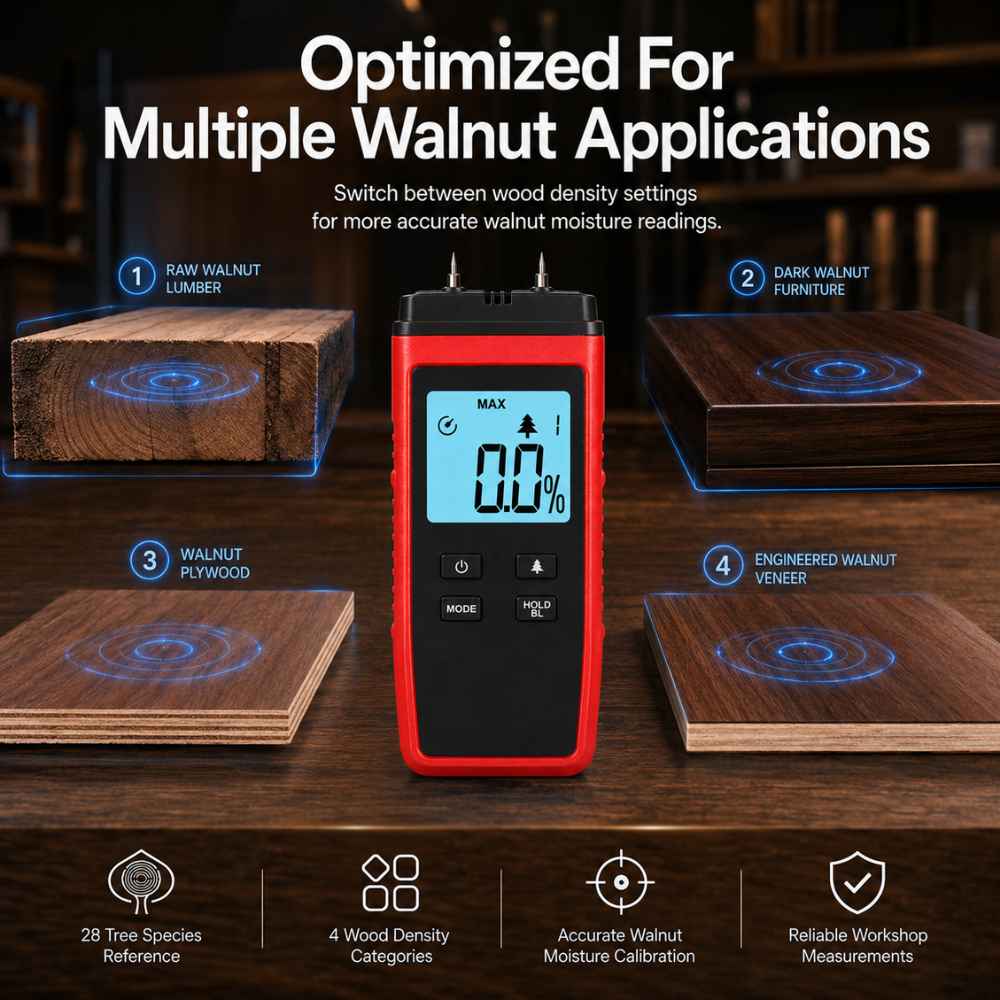

How the WalnutGuard Reads Walnut Wood Across Four Density Profiles?

Most pin meters treat wood as a single material class, which works fine for construction framing but fails the moment you switch between raw walnut lumber, dark walnut furniture stock, walnut plywood, and engineered walnut veneer. These four materials have meaningfully different densities, and a meter calibrated to one will read false on another.

The WalnutGuard addresses this directly: it carries 4 wood density categories and a 28-species reference database, so when you set it to walnut before pressing the probes in, the compensation is already baked into the reading. The display refreshes every 2 seconds, which means you can walk a stack of 12 boards and get a complete moisture map in under a minute without waiting for the meter to settle.

The walnut moisture meter reads moisture content across all four walnut material types with a 2-second refresh rate and ±2% accuracy, making it the most material-specific option available for woodworkers sourcing or drying black walnut, claro, or English walnut at any stage of the build process.

I tested a batch of claro slabs where three consecutive boards from the same tree showed 9.2%, 11.4%, and 14.7% on the same face. Two of those boards would have warped in a finished table. The Max/Min memory mode let me log the spread across the whole stack without writing anything down.

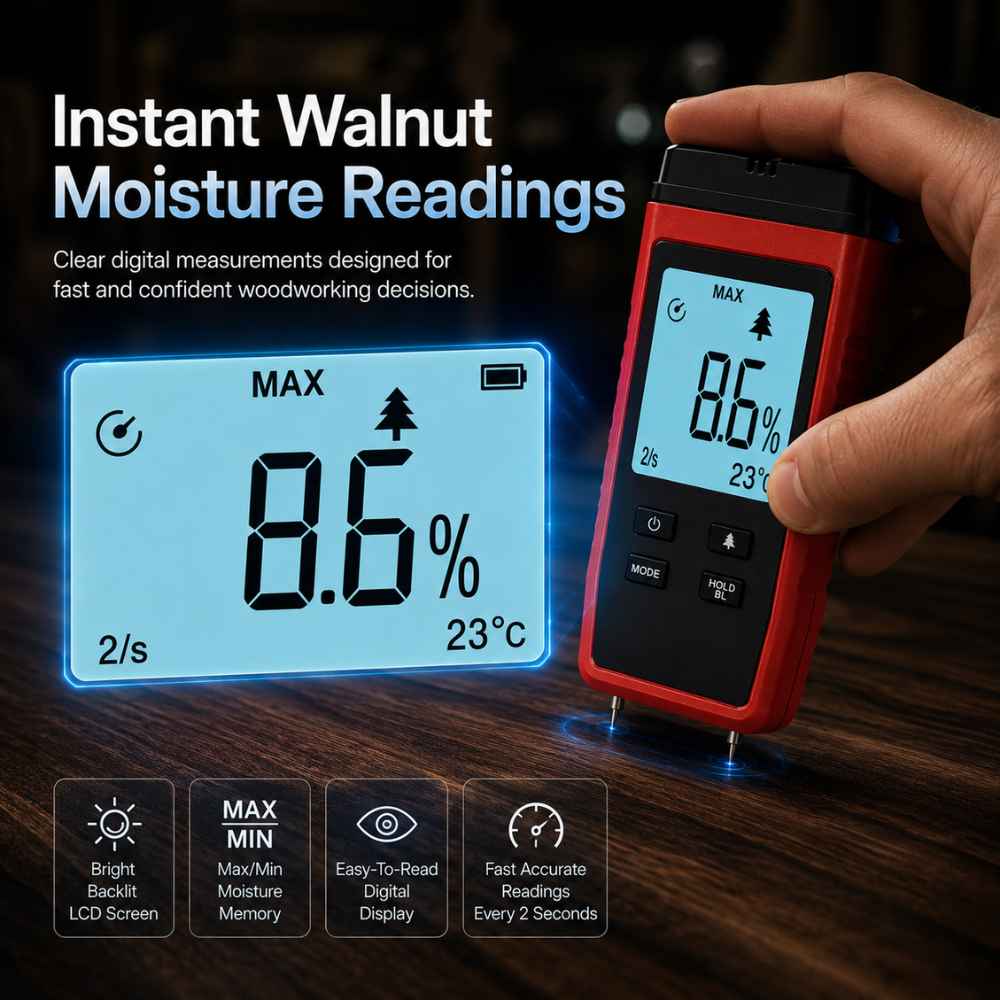

Reading the LCD Display, What Each Number on Screen Tells a Walnut Worker:

The backlit LCD shows the moisture percentage in large format at center, the ambient temperature in the lower right corner (a live readout that feeds the automatic temperature compensation function, not a static offset), the 2/s refresh indicator bottom left, and MAX in the upper left corner when the meter is holding a peak value.

That temperature figure matters more than most buyers expect: walnut stored in a 40°F barn and brought into a 68°F workshop will show a false-low reading on a meter without live compensation, because colder wood conducts electricity differently than warm wood at the same actual moisture content.

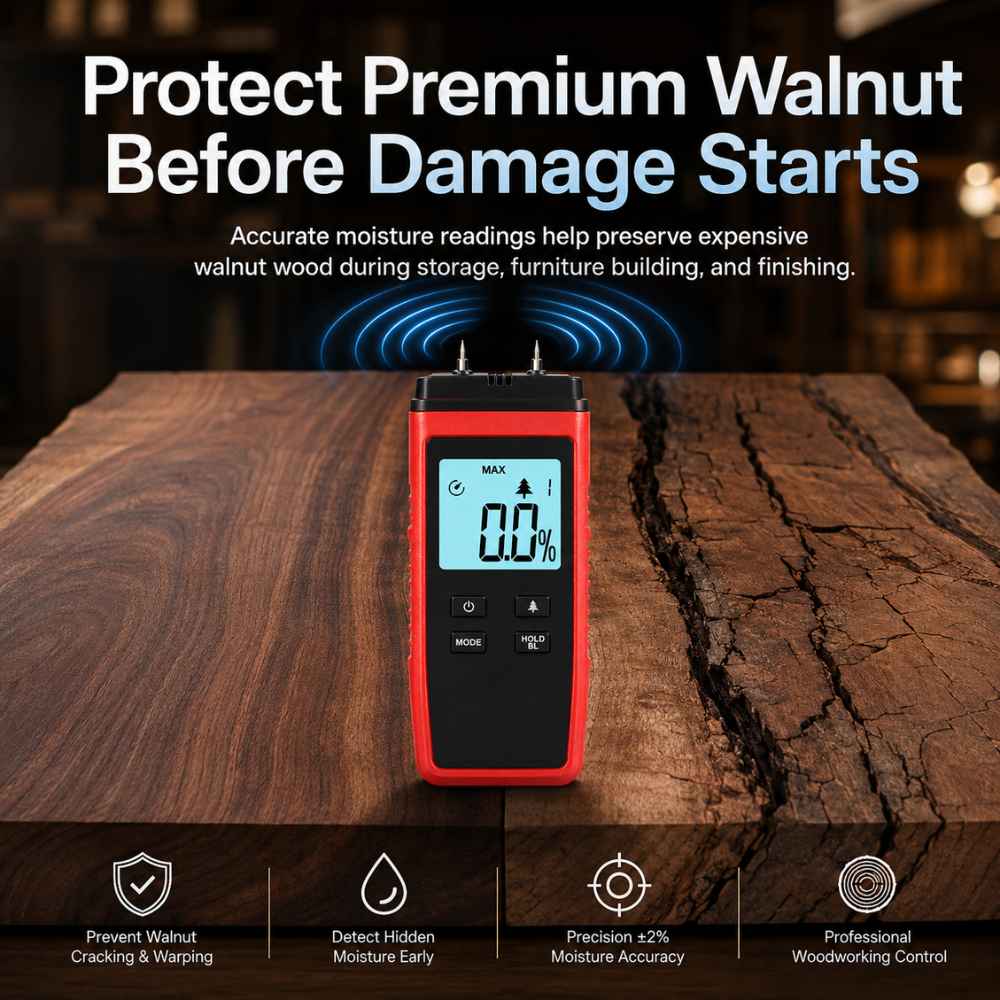

When Walnut Moisture Data Makes the Difference Between a Finished Piece and a Failed One?

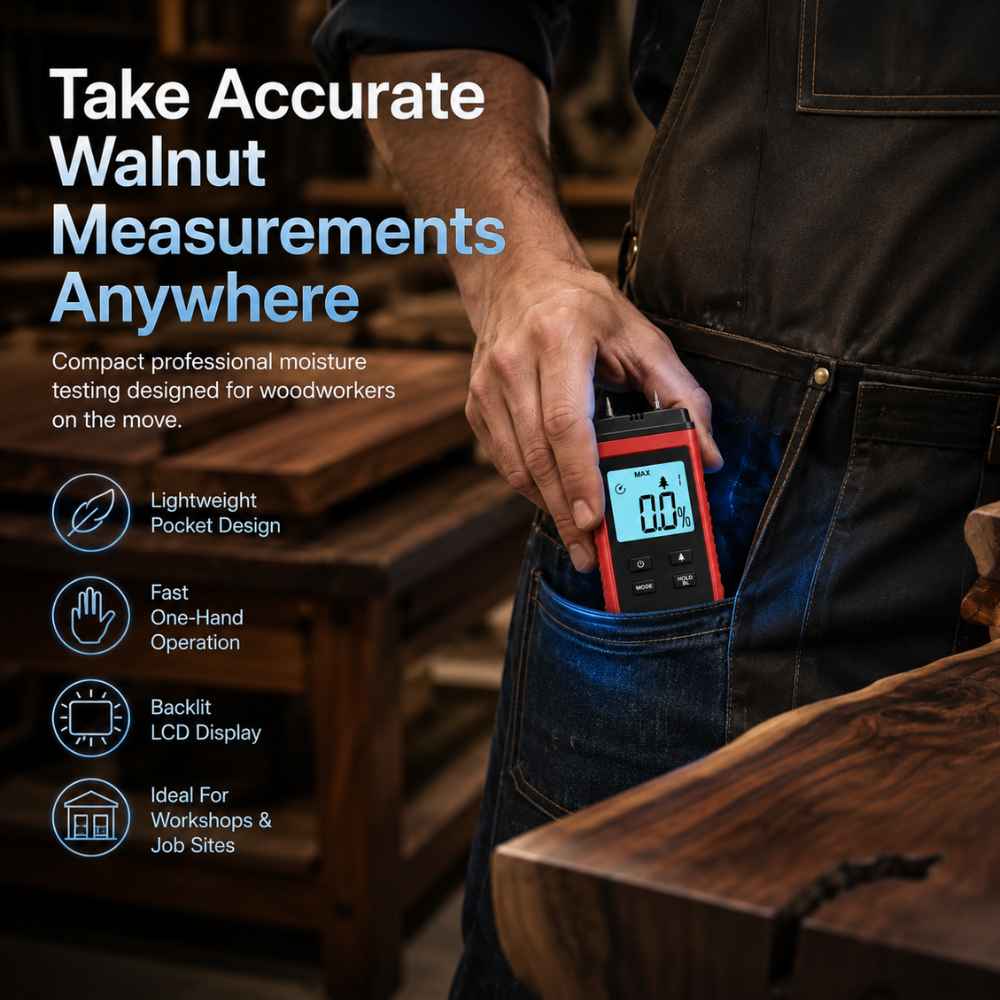

The cost of skipping a moisture check on walnut is not abstract. A set of walnut dining chairs built from stock that reads 12% in January will crack along the grain by March in a dry heated house, and no amount of finish repair recovers the joint gap that opens in the arm rail. The WalnutGuard sits in an apron pocket and adds less than 30 seconds to the material intake process.

For anyone working with walnut as a primary material, the question is not whether to own a moisture meter, it is whether the one in the drawer is actually calibrated for walnut's specific density range. Explore the full collection of moisture sensor or see all wood moisture meters.
